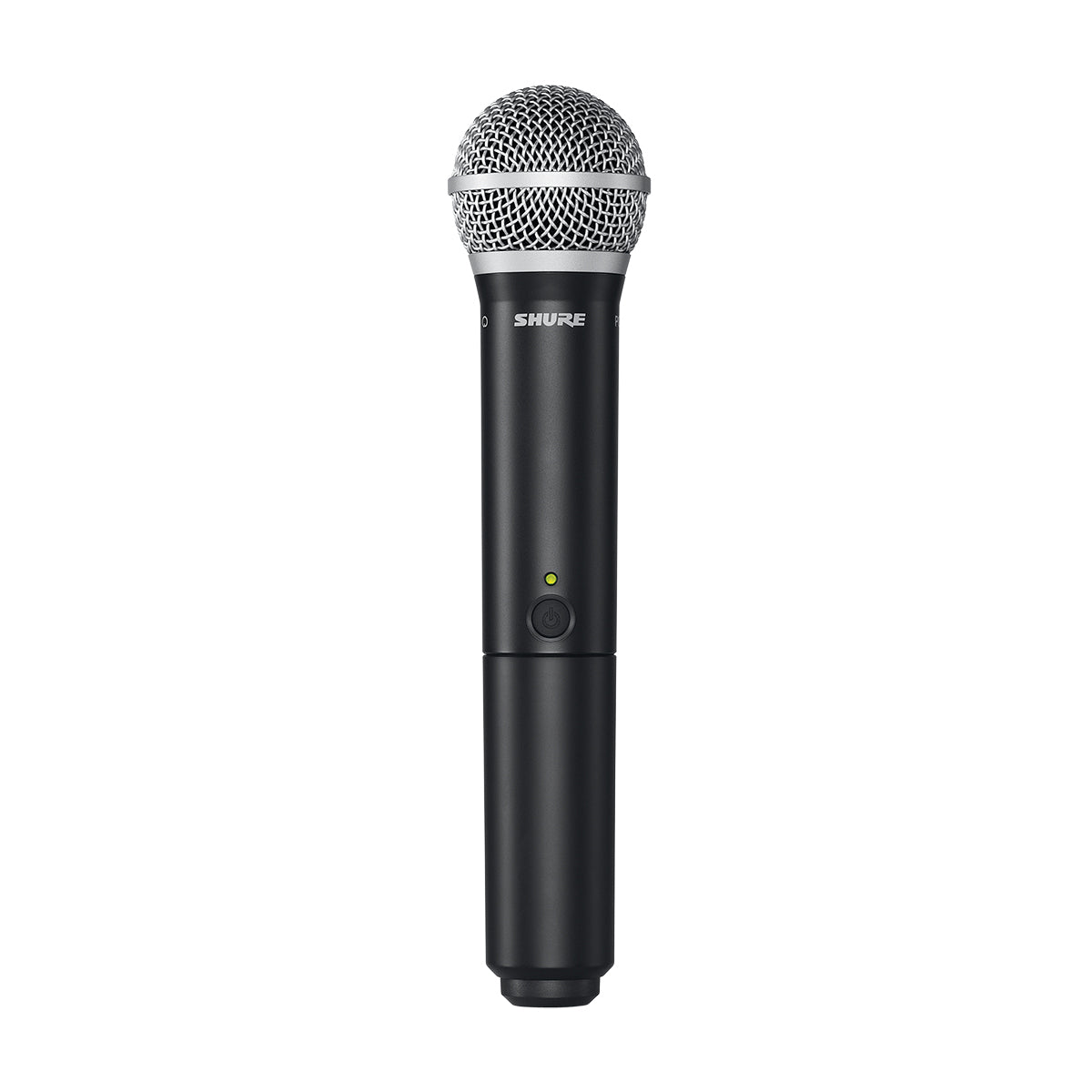

Features (2) PG58 Handheld Microphones tuned to accentuate the clarity of lead and backup vocals with analogue transmission.
Environments: Club, Live Performance, Place of worship, Rehearsal Space
Industries: Education, House of Worship
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.
| Band | Range | Output Power |
|---|---|---|
| H9 | 512 to 542 MHz | 10 mW |
| h20 | 542 to 572 MHz | 10 mW |
| h21 | 572 to 596 MHz | 10 mW |
| J11 | 596 to 616 MHz | 10 mW |
Output Impedance
| XLR connector | 200 Ω |
| 6.35 mm (1/4") connector | 50 Ω |
Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
| XLR connector | –27 dBV (into 100 kΩ load) |
| 6.35 mm (1/4") connector | –13 dBV (into 100 kΩ load) |
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>50 dB, typical
Dimensions
1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight
15.1 oz. (429 g)
Housing
Molded ABS
Power Requirements
12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
Audio Input Level
| 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum |
Gain Adjustment Range
10 dB
RF Transmitter Output
10 mW, typical
varies by region
Dimensions
8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight
7.7 oz. (218 g) without batteries
Housing
Molded ABS
Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline
Battery Life
up to 14 hours (alkaline)
