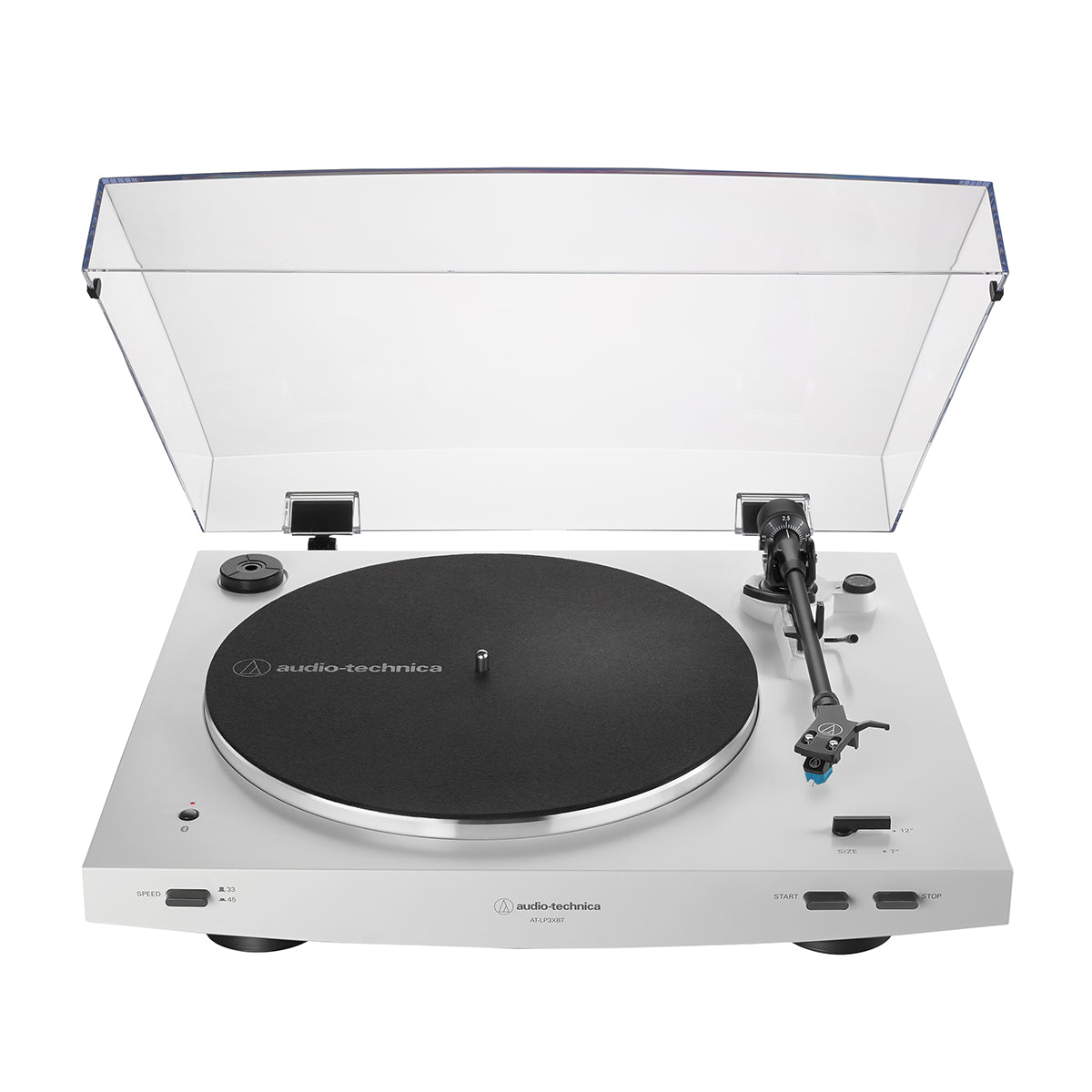

The AT-LP3XBT turntable combines 60 years of high-fidelity design with convenient Bluetooth® technology, giving you all the benefits of vinyl with the freedom to connect to the latest Bluetooth® speakers or headphones.
The successor model of the previous AT-LP3 comes with beneficial upgrades, such as wireless compatibility with the high-quality Qualcomm® aptX Adaptive audio and Qualcomm® aptX™ audio codecs, the AT-VM95C cartridge, which is compatible with any of Audio-Technica‘s VM95 Series replacement styli, detachable RCA output cables, and the external AC adapter, which handles the AC/DC conversion outside of the chassis, reducing noise in the signal chain.
Communication System | Bluetooth version 5.2 |
RF Output | 2.5 mW EIRP |
Maximum Communication Range | Line of sight - approx. 10 m (33') |
Frequency Band | 2.402 GHz to 2.480 GHz |
Modulation Method | GFSK, Pi/4DQPSK, 8DPSK |
Compatible Bluetooth Profiles | A2DP |
Supported Codecs | Qualcomm® aptXTM Adaptive audio, Qualcomm® aptXTMaudio, SBC |
Type | Belt-drive, fully automatic operation |
Motor | DC motor |
Drive Method | Belt drive |
Speeds | 33-1/3 RPM, 45 RPM |
Turntable Platter | Die-cast aluminum |
Wow and Flutter | < 0.2 % WRMS (33 RPM) at 3 kHz |
Signal-to-Noise Ratio | > 60 dB |
Output Level | PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE: 252 mV nominal at 1 kHz, 5 cm/sec |
Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
Type | Static balanced straight tonearm |
Effective Length | 221.5 mm |
Overhang | 19 mm |
Maximum Tracking Error Angle | Less than 3.0° |
Stylus Pressure Adjustment Range | 1 to 4 g |
Applicable Cartridge Weight Range (including headshell) | 14.5 to 20 g |
Cartridge Model | AT-VM95C |
Cartridge Type | VM |
Recommended Load Impedance | 47,000 ohms |
Output Voltage | 4.0 mV (1kHz, 5cm/sec) |
Stylus | 0.6 mil bonded conical |
Cantilever | Aluminum pipe |
Tracking Force Range | 1.8 to 2.2 g (standard 2.0 g) |
Cartridge Weight | 6.1g (0.22 oz) |
Headshell Model | AT-HS3BK |
Headshell Weight | 11.1 g (including lead wires) 10.3g (excluding lead wires) |
Headshell Overhang Adjustment | ±8 mm |
Power Supply Requirements | 100-240 V, 50Hz/60Hz, 0.6A Max. |
Power Consumption | 2 W |
AC Adapter | 12V, 0.5 A |
Dimensions | 435.6mm (17") ×374 mm (15 ") ×128 mm (5.0") (W × D × H) |
Weight | 5.0 kg (11 lbs) |
Accessories Included | Dust cover Felt mat Platter (with drive belt) Counterweight Headshell (AT-HS3BK) with VM stereo cartridge (AT-VM95C) 45 RPM adapter RCA audio cable (Approx. 1.0 m (3.3')) AC adapter (Approx. 1.5 m (4.9')) |
Replacement Stylus (sold separately) | AT-VMN95C |
Replacement Headshell (sold separately | AT-HS3BK |
Replacement Belt (sold separately) | AT-LP3XBT exclusive belt |
For product improvement, the product is subject to modification without notice.
